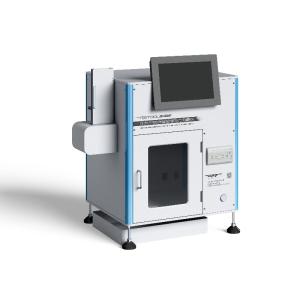

    HCT-I Heating Not-burning Cigarette Plug Unplug Power Tester

    Product introduction:


    The HCT-I Heating Not-burning Cigarette Plug Unplug Power Tester can automatically detect the axial inserting and pulling force between heat-not-burn cigarette and heating device, provide data for the production of low-temperature cigarettes, and improve the detection level of tobacco products. It is a new advanced automatic detection device for cigarettes in the tobacco industry in China.


    Main technical indicators:


    Sample length range43 ~ 50mm
    Sample diameter range7~ 8mm

    Force measurement range

    0~25N

    Force measurement accuracy

    0.5 N

    Measurement speed

    2 pcs/min (fastest)

    Cigarette holder capacity

    ≥25 pcs


    Performance and features:

    • It adopts the quick-release cigarette holder for easy cigarette loading.
    • It adopts three-jaw cigarette holding design to fit the shape of cigarette inserting and pulling by fingers.
    • It adopts the quick-release heater clamping design, compatible with a variety of heaters, fast and adjustable.
    • With built-in smoking function, it can measure the pulling force after heating and smoking.
    • It provides the clamping with rotation function for pull-out and rotation of the pin heater.

    Requirements for service environment:


    Ambient temperature+5℃ ~ +40 ℃ (recommended ambient temperature 22±2℃)
    Recommended ambient humidity60±5%RH No condensation
    Power supplyAC220V±10% 50Hz±5%
    Air supply5~6bar, 30L/min
